Refrigerated barrels for bulk wine

TAPPING SYSTEMS FOR BULK WINE

We have a wide range of refrigerated wooden barrels and vats in which bulk wine is cooled.

The wine must be poured into the stainless steel container located inside the vats or barrels equipped with a refrigeration motor; inside them the wine cools in about two hours to the desired temperature. This temperature is set directly on the thermostat.
The operation is the same as home refrigerators; it does not require any particular maintenance other than normal cleaning which is done inside the stainless steel compartment containing the wine using a normal sponge.
To choose the most appropriate machine, it is best to reflect on the following points: If it is necessary to serve two different types of wine, you can purchase two separate refrigerator barrels but you can also get just one with two separate compartments and two taps. If the two wines are a white and a rosé, i.e. they can be served at the same temperature, it is better to take the type TU that is, with a single temperature, where the temperature can be set as desired, but will be the same for both wines. If instead they were a white and a red, the type is advisable TN where the cooling coils cool only one of the two tanks and in this way the white will be cooled more than the red which, poured into the adjacent compartment, will be less cold than the white and only refreshed by the proximity of the compartment containing the white. If you then want to set the temperatures to your liking, there is a type TD equipped with two separate thermostats, one for each of the two wines.

refrigerated barrels
refrigerated barrels

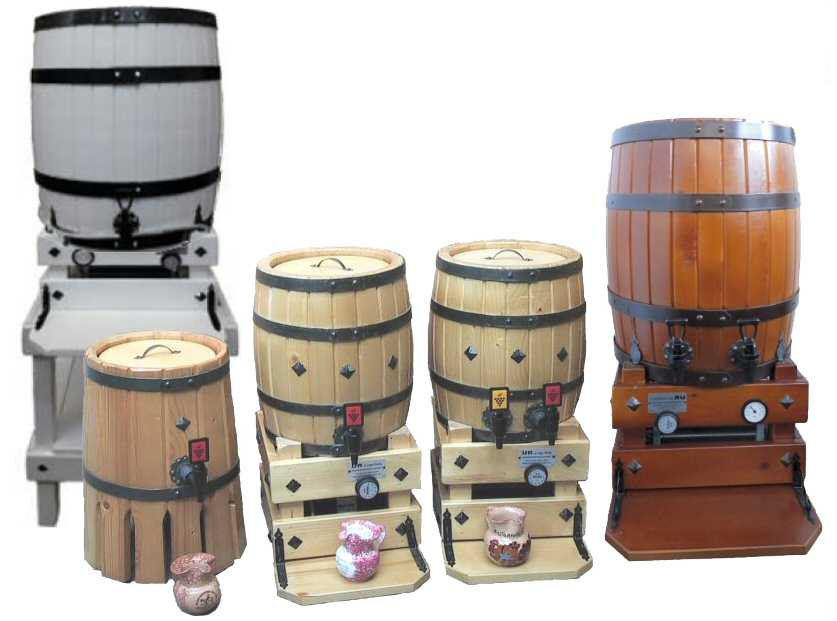

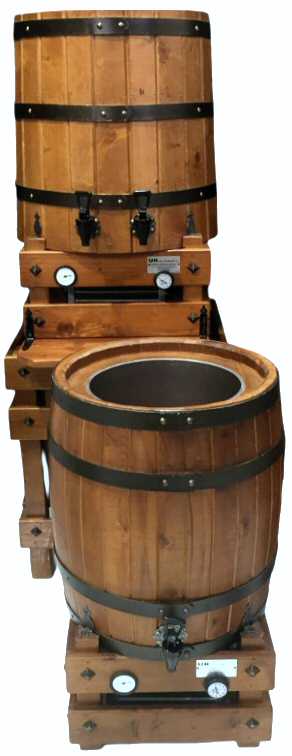

REFRIGERATED VATS AND BARRELS

The simplest system for cooling and tapping the wine contained in 'rustic' containers in painted fir wood with internal tanks in AISI 304.

MATERIAL USED FOR CONSTRUCTION:

  • Rustic in solid wood and wrought iron
  • Stainless steel tub open at the top for easy cleaning..
  • 'Always-full' float to prevent the wine from oxidising.
  • Polyurethane insulation.
  • Thermometer/Thermostat to set the temperature.
  • Standard colour: medium walnut
  • All models operate at 220 V/50 Hz. R134a ecological gas

SUPPLIED ACCESSORIES:

  • Wooden dust cover with grip knob.
  • Anti-oxidation float in food-grade plastic.
  • Food grade plastic dispenser tap.
  • Carafe support shelf.

ACCESSORIES ON REQUEST:

  • Stainless steel taps

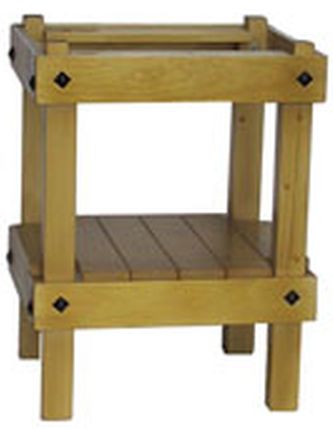

  • Raising banquets (€ 473.00)
  • Custom color painting (surcharge € 110.00)

refrigerated barrels
refrigerated barrels
refrigerated barrels

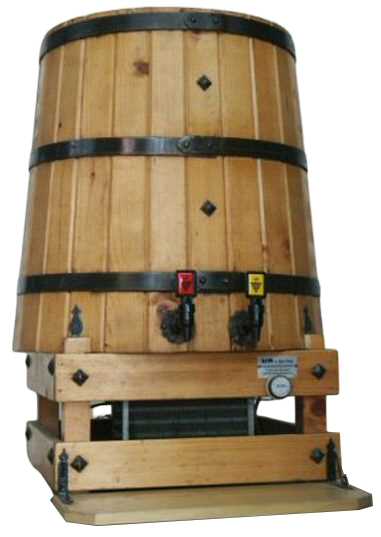

REFRIGERATED VATS

refrigerated vats

External structure of trapezoidal shape in painted solid fir - stainless steel tanks containing the bulk wine to be tapped - refrigerator motor located in the base pedestal.

REFRIGERATED VATS with single container

art model lt. cm. kg. volt Single
bathtub
1 T 5 5 36Xh46 16 220/50 1'235.00
4 T 25 25 49x49xh81 40 220/50 1'650.00
5 T 50 50 56x56xh81 47 220/50 1'874.00
79 T 100 100 68x68xh97 55 220/50 2'626.00
80 T 150 150 78x78xh97 70 220/50 3'149.00

REFRIGERATED VATS with double container

art model lt. cm. kg. TU-temp.
unique
TN-temp.
different
TD-temp.
double
7 T12 12 25 49x49xh81 40 1'848.00 2'205.00 2'497.00
8 T25 25 50 56x56xh81 47 2'283.00 2'629.00 2'906.00
9 T50 50 100 68x68xh97 60 2'885.00 3'223.00 3'540.00
10 T75 75 150 78x78xh97 70 3'315.00 3'646.00 3'951.00

We can supply the 2 tanks with the same temperature (TU), a single tank cooled and the other cooled by proximity (TN) or two independent temperatures of your choice (TD).

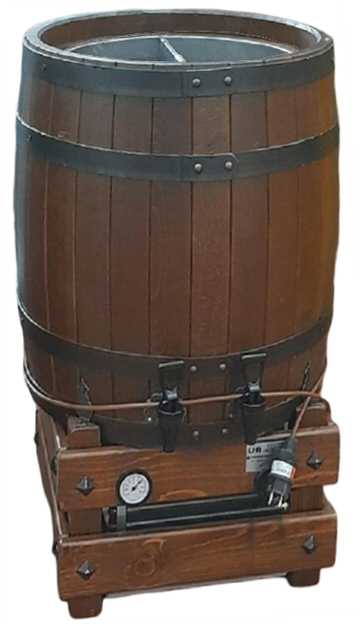

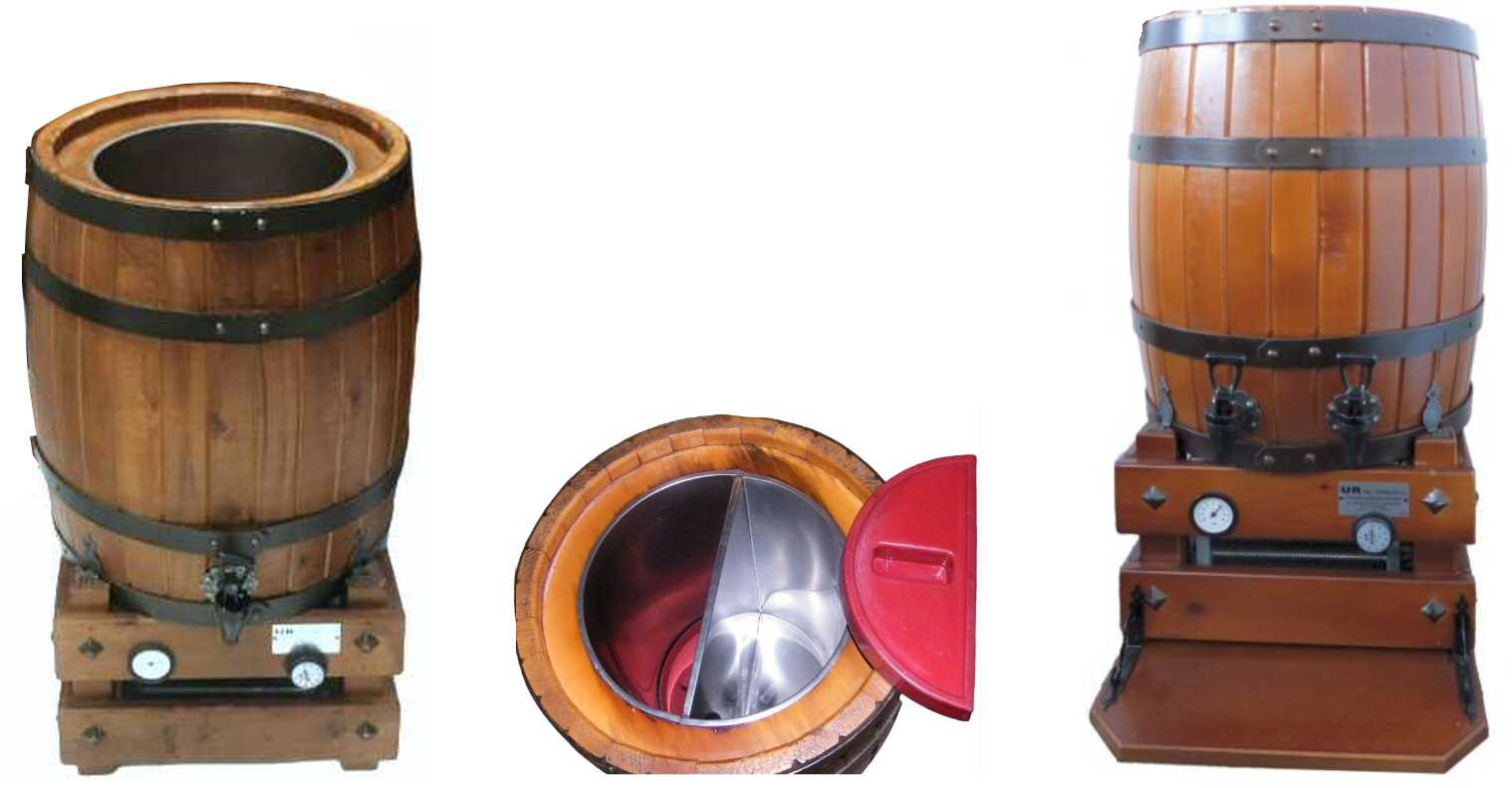

REFRIGERATED BARRELS

refrigerated barrels

External structure of classic barrel shape in painted solid fir - stainless steel tanks containing the bulk wine to be tapped - refrigerator motor located in the base pedestal.

REFRIGERATED BARRELS with single container

art model lt. cm. kg. volt Single
bathtub
3 B 8 8 35x35x65 25 220/50 1'578.00
15 B12 12 35x35x79 32 220/50 1'578.00
19 B25 25 56x56xh81 40 220/50 1'828.00
17 B50 50 68x68xh97 47 220/50 2'039.00

REFRIGERATED BARRELS with double container

art model lt. cm. kg. TU-temp.
unique
TN-temp.
different
TD-temp.
double
54 B 4 4 8 35X35X65 25 1'874.00 - -
18 B12 12 40 49x49xh81 40 2'011.00 2'371.00 2'695.00
20 B25 25 50 56x56xh81 47 2'443.00 2'787.00 3'118.00

We can supply the 2 tanks with the same temperature (TU), a single tank cooled and the other cooled by proximity (TN) or two independent temperatures of your choice (TD).

glycol

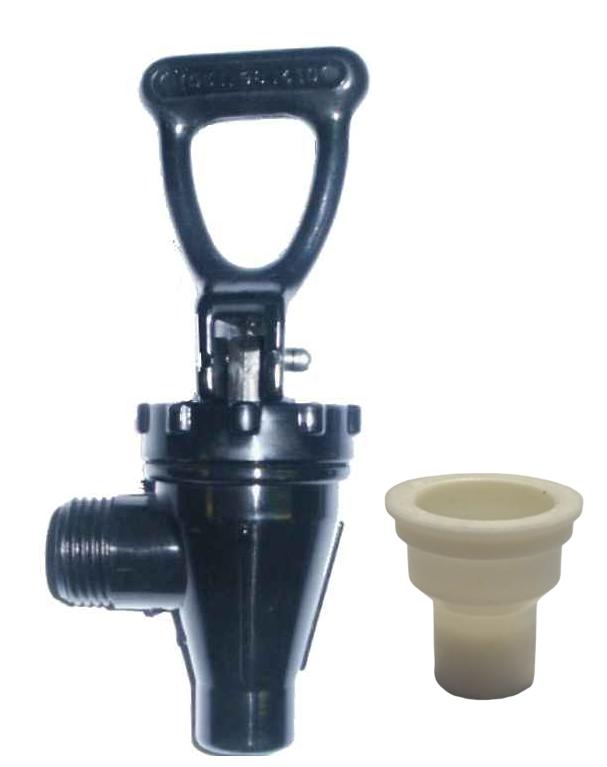

Replacement tap for refrigerated barrels

Specific model for PL dispensers

It is made of the best quality food-grade nylon and its peculiar characteristic is that it is equipped with an internal shaped gasket in food-grade rubber which guarantees a perfect seal in all conditions.
The model used on the barrels has a 1/2"male thread connection

Tap complete with gasket € 28.00

Replacement gasket for tap € 11.00

All prices indicated on the site are ex-warehouse
