stainless steel tanks for storage
UR Chill Technology
refrigeration solutions Stainless steel tanks

CONTAINERS IN 18/10 STAINLESS STEEL - AISI 304

We have a wide range of storage containers entirely made of stainless steel for food use.

They are all specially designed for the containment and conservation of oil, wine, beer and milk.
They are built with first choice materials and comply with EEC directives.

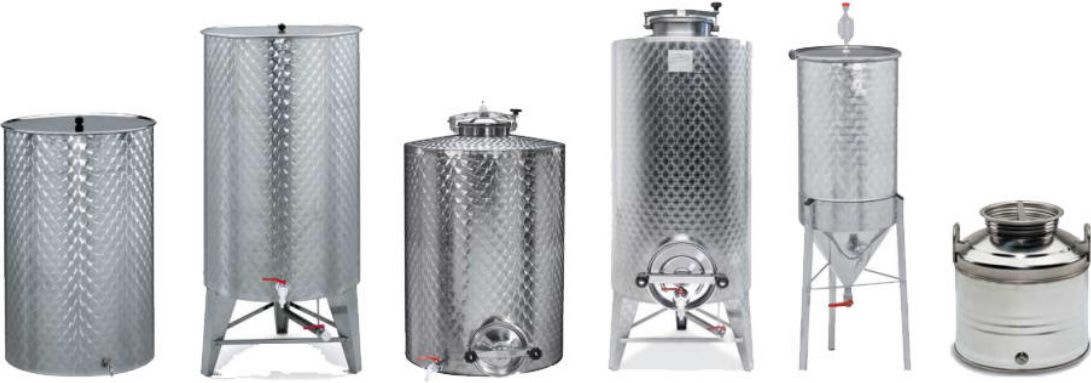

stainless steel tanks for storage

FP series open flat bottom tanks
FPC series flat bottom tanks with upper manhole cover
Open FCP series conical bottom tanks "always full"with feet
FCCP series conical bottom tanks with upper "storage"manhole with feet

flat bottom tanks

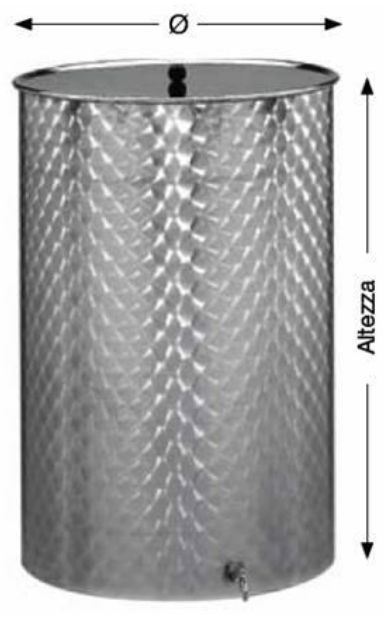

AISI 304 FLAT BOTTOM 'FP' CONTAINERS

The classic robust cylindrical containers with multiple uses. The wide range of sizes and capacities, capable of satisfying any need, makes them indispensable not only for classic storage but also for normal cellar or oil mill activities (see decanting, etc.).

MATERIAL USED FOR CONSTRUCTION:

  • AISI 304 stainless steel flowered finish thickness. mm. 0.6-0.7-0.8-1.5 top quality.
  • Latest generation TIG welding technology, without the addition of material.
  • Automatic brushing and pickling of welds.

SUPPLIED ACCESSORIES:

  • Stainless steel dust cover with grip knob.
  • Female threaded ring nut. Ø 1/2"- 1"in AISI 304 stainless steel.

ACCESSORIES ON REQUEST:

  • AISI 304 stainless steel side door (surcharge €345.00)
  • Stainless steel taps
  • External level indicators
  • Pneumatic float "always full".
  • Semi-hermetic lid with band.
  • Three-legged supports
Technical characteristics
Code-liters Ø mm. Height mm. Ø Tap Weight * Kg. €
70060-Lt.60 400 500 1/2" 4.6 110.00
70100-Lt.100 400 750 1/2" 7.1 125.00
70101-Lt.100 525 500 1/2" 9.0 140.00
70150-Lt.150 525 750 1/2" 9.0 180.00
70200-Lt.200 525 1000 1/2" 9.8 200.00
70250-Lt.250 640 700 1" 11.0 210.00
70300-Lt.300 640 1000 1" 12.6 281.00
70400-Lt.400 720 1000 1" 20.4 410.00
70500-Lt.500 720 1250 1" 24.2 463.00
70600-Lt.600 800 1250 1" 27.0 510.00
70700-Lt.700 800 1500 1" 29.0 571.00
70800-Lt.800 930 1250 1" 34.0 644.00
70010-Lt.1000 930 1500 1" 41.0 780.00
70015-Lt.1500 1150 1500 1" 104.0 1730.00
70020-Lt.2000 1150 2000 1" 129.0 2250.00

PUMP FLOAT KIT FOR STAINLESS STEEL TANKS

The pump floats have the task of avoiding contact with atmospheric air, containing oxygen, of food liquids such as wine, oil and other foods as they are sensitive to oxidation. They work by creating an airtight barrier between the liquid and the outside air during storage periods.
The air chamber inflates and adapts perfectly to the walls of the tank, forming a barrier that prevents contact with oxygen

lt. €
50-75-100 236.00
200 300.00
300 311.00
500 343.00
800 466.00
1000 533.00
1500 576.00
2000 801.00
pneumatic float

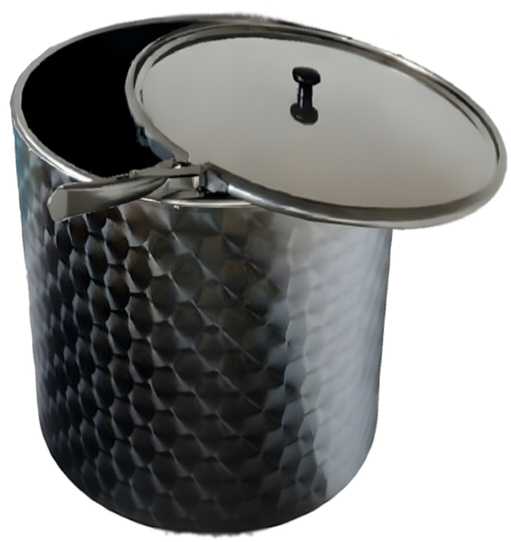

LID KIT WITH SILICONE GASKET

Stainless steel lids complete with gasket and metal locking band. Used to make refrigerated and non-refrigerated stainless steel tanks semi-hermetic. The silicone rubber gasket is placed on the edge of the tank on which the lid seals and is held pressed by the locking band with lever closure. The kit is compatible exclusively with our stainless steel tanks

lt. €
for tanks up to 100 LITRES 105.00
for 101-250 LITRE tanks 122.00
for 300-500 LITRE tanks 172.00
for 600-800 LITRE tanks 258.00

hermetic lid for tanks
flat bottom tanks

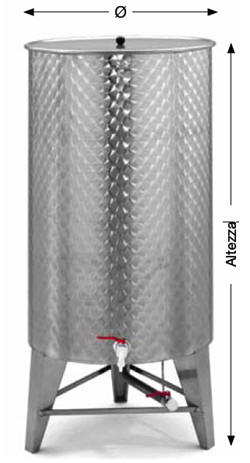

Open conical bottom tanks with feet "FCP series"

Latest generation containers complete the open cylindrical tanks by equipping them with a low taper conical bottom (10 degrees), maintaining the construction quality unchanged. The conical bottom is suitable for the containment and conservation of food liquids which by their nature are prone to sedimentation of solid particles on the bottom (see olive oil, white wines, etc.).

MATERIAL USED FOR CONSTRUCTION:

  • AISI 304 stainless steel flowered finish thickness. mm. 0.6-0.7-0.8-1.5 top quality.
  • Latest generation TIG welding technology, without the addition of material.
  • Automatic brushing and pickling of welds.

SUPPLIED ACCESSORIES:

  • Stainless steel dust cover with grip knob.
  • Threaded ring nut Ø 1/2"- 1"female. partial discharge.
  • No. 3 boxed and welded stainless steel feet.
  • Stainless steel pipe for total drain Ø 1/2” - 1”. female

ACCESSORIES ON REQUEST:

  • AISI 304 stainless steel side door (surcharge €345.00)
  • Stainless steel taps
  • External level indicators
  • Pneumatic float "always full".
  • Semi-hermetic lid with band.
Technical characteristics
Code-liters Ø mm. Height mm. Ø Tap Weight * Kg. €
73060-Lt.60 400 900 1/2" 14.6 215.00
73100-Lt.100 400 1200 1/2" 17.1 255.00
73101-Lt.100 525 900 1/2" 19.0 260.00
73150-Lt.150 525 1150 1/2" 21.0 295.00
73200-Lt.200 525 1400 1/2" 22.8 325.00
73250-Lt.250 640 1100 1" 24.0 345.00
73300-Lt.300 640 1400 1" 28.6 440.00
73400-Lt.400 720 1400 1" 36.4 510.00
73500-Lt.500 720 1650 1" 42.2 590.00
73600-Lt.600 800 1650 1" 51.0 735.00
73700-Lt.700 800 1500 1" 57.0 765.00
73800-Lt.800 930 1650 1" 69.0 790.00
73010-Lt.1000 930 1900 1" 73.0 890.00
73015-Lt.1500 1150 1900 1" 120.0 1980.00
73020-Lt.2000 1150 2400 1" 149.0 2660.00
conical bottom tanks

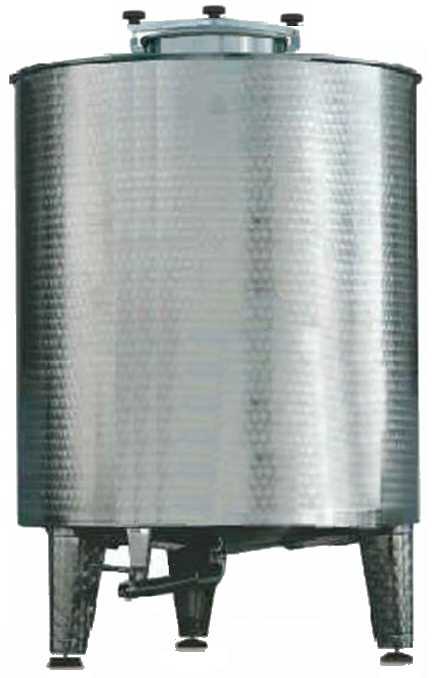

FCCP series "storage"conical bottom tanks with upper manhole cover and feet. Versions with and without door

Hermetically sealed version of FCP cylindrical containers with conical bottom. The container is completely closed and equipped with a stainless steel upper manhole cover with relative vent valve. Absolutely indispensable for the prolonged storage of liquid, it is widely used combined with inert gas filling systems (see nitrogen, etc.).

MATERIAL USED FOR CONSTRUCTION:

  • AISI 304 stainless steel flowered finish thickness. mm. 0.6-0.7-0.8-1.5 top quality.
  • Latest generation TIG welding technology, without the addition of material.
  • Automatic brushing and pickling of welds.

SUPPLIED ACCESSORIES:

  • Manhole cover Ø 400 mm. with 4 knobs.
  • Threaded ring nut Ø 1/2"- 1"female. partial discharge.
  • Stainless steel pipe for total drain Ø 1/2” - 1”. female
  • No. 3 boxed and welded stainless steel feet.

ACCESSORIES ON REQUEST:

  • AISI 304 stainless steel side door (surcharge €345.00)
  • Stainless steel taps
  • External level indicators
Technical characteristics
Code-liters Ø mm. Height mm. Ø Tap Weight * Kg. €
85300-Lt.300 640 1700 1" 37 957.00
85400-Lt.400 720 1700 1" 50 995.00
85500-Lt.500 720 1950 1" 58 1105.00
85600-Lt.600 800 1950 1" 62 1226.00
85800-Lt.800 930 1950 1" 73 1413.00
85010-Lt.1000 930 2200 1" 79 1589.00
85011-Lt.1000 1025 1950 1" 80 1589.00
85015-Lt.1500 1150 2200 1" 144 2607.00
85020-Lt.2000 1270 2200 1" 175 3218.00
conical bottom tanks

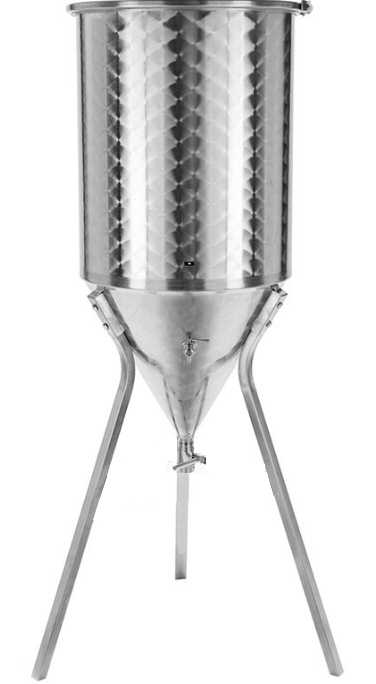

Conical fermenters for beer with conical bottom 60° - series with feet.

Conical containers for beer fermentation. Small containers entirely made of AISI 304 stainless steel, completely sanitisable, are ideal for home beer production.

MATERIAL USED FOR CONSTRUCTION:

  • AISI 304 stainless steel flowered finish thickness. mm. 0.6-0.7-0.8-1.5 top quality.
  • Latest generation TIG welding technology, without the addition of material.
  • Automatic brushing and pickling of welds.

SUPPLIED ACCESSORIES:

  • Stainless steel dust cover with food seal.
  • Stainless steel hermetic band for lid closure.
  • Threaded ring nut Ø 1/2"- 1"female. side exhaust.
  • Stainless steel pipe for bottom drain Ø 1/2” - 1”. female
  • No. 3 boxed and welded stainless steel feet.

ACCESSORIES ON REQUEST:

  • Bubbler
  • Stainless steel taps
  • External level indicators
Technical characteristics
Code-liters Ø mm. Height mm. Ø Tap Weight * Kg. €
73030b-Lt.30 305 1250 1" 11 325.00
73050b-Lt.50 385 1450 1" 13 412.00
73100b-Lt.100 445 1500 1" 16 486.00
73200b-Lt.200 515 1850 1" 20 547.00
73300b-Lt.300 625 1850 1" 22 671.00

All prices indicated on the site are ex-warehouse

↑
